PRODUCTS:
Grounding & Explosion Protection

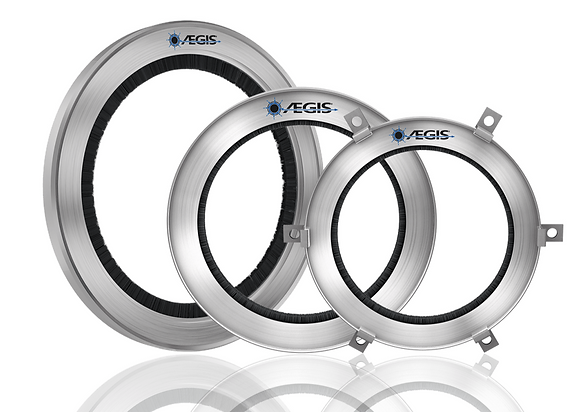

AEGIS® PRO SERIES
For Large Frame/Low Voltage and Medium Voltage Motors, Generators, & Turbines:
The AEGIS® PRO Ring provides reliable shaft grounding for large frame and medium voltage motors, generators, and turbines to divert harmful shaft voltage to ground and extend bearing life. Large motors and generators often have much higher induced shaft voltage and bearing current. That’s why these rings include six circumferential rows of conductive microfiber to provide extra protection for these high current applications.
Secure Tech is a high strength fire retardant woven mesh designed for separation of secure areas, where breathable and or security separation is required. Secure tech can also be used for blast resistant netting from aircraft, projectiles debris and containment of materials during category 5 storms.
Secure Tech is a vagrant resistant non-tearing mesh that can be fastened by either mechanical fasteners or MH1 structural Adhesive. The Benefits of Secure Tech netting include: Sound absorption, fire retardant, non combustible, and high strength and containment applicable for air drops.
Designed to be used in difficult to access areas, for separation of secure and non secure areas.
Use Secure-TECH above ceilings, open plenums, security separations and curtain walls.
Perfect for difficult to access areas!
MATERIALS:
Polyethylene, stainless steel
and plastic.
SAFETY:
This product meets or exceeds all applicable OSHA 1926 Subpart M & OSHA 1910 standards.
+ ANSI A10.11-2010 and NFPA 701 Fire Tests
for Flame Propagation of Textiles and Films.
The Lyncole XIT® Grounding System
The Lyncole XIT Electrolytic Grounding System has become the PROTECTION STANDARD in the Facility Protection industry.
XIT Straight Shaft
The first and original patented electrolytic grounding system.
The continuously advancing telecoms, data center, computer, and electronics industries require the most advanced systems available. Ahead of its time, the UL-listed, self-moisturizing and maintenance-free XIT Grounding System provides low resistance in diverse climates around the world, without harmful effects on the environment.
Standard Models:
-
K2-10CS: 10′ Straight Shaft model
-
K2-20CS: 20′ Straight Shaft model
L-Shaped Model
For environments that do not allow Straight Shaft installation.
The Lyncole XIT Grounding System is available in an “L”-Shaped model for environments that don’t allow a Straight Shaft installation. The “L”-Shaped model has the same features and benefits of the Straight Shaft model.
Standard Models:
-
K2L-10CS: 10′ “L”-Shaped model with 10′ horizontal length and 3′ vertical riser
-
K2L-20CS: 20′ “L”-Shaped model with 20′ horizontal length and 3′ vertical riser
XIT Deep Well
Fully submerged application.
The d4-11wW Deep Well electrode length is 11 feet. The top end of the electrode is an 8.5-inch long section made of a 2-inch diameter type K copper tube that is soldered to a reducer to join the lower
10-foot section made of a 4-inch diameter type K hard tube.
The K4-11DW is permanently capped on the top and bottom. This deep well electrode is not filled with Calsolyte salts, instead it has holes, allowing the tube to fill with water.
